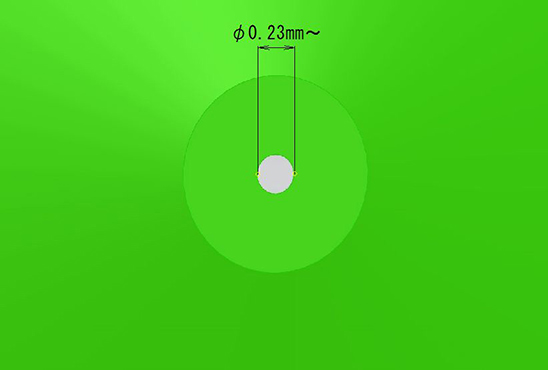

The orifice can be as small as 0.23mm.
A fine spray is produced with low gas pressure.
Good for compressed gas (nitrogen) or carbon dioxide formulations
(Nozzle/Insert Front)
HOME > Ultra-Precision Machining
Profile of Production Division
Newpla’s ultra-precision machining technology supports creation of new markets for customers

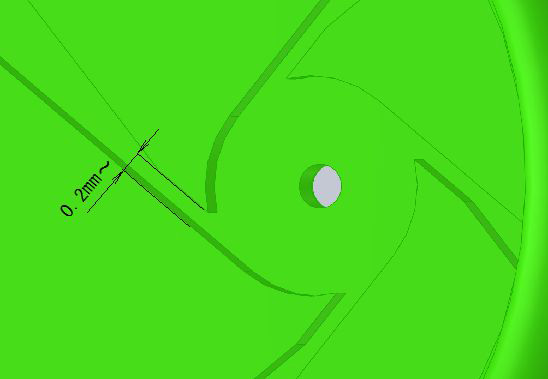

The width of the groove in the screw can be as small as 0.20mm.
The flow velocity of the discharge solution is accelerated to produce a fine spray.
Good for cosmetic aerosols with compressed gas (nitrogen) formulations.
(Nozzle/Insert Back)

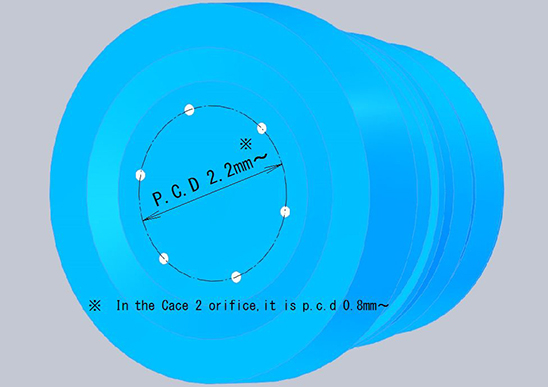

Multiple orifices can be provided (e.g. from 2 to 6).
Small orifices deliver a fine mist in a soft and gentle spray.
Large orifices spray larger quantities.
(Example of 6 orifices)(Nozzle/Insert Front)
Acetal resins are the only resin grades in the world with low odor.
Newpla uses safe resins developed in Japan
as low-odor grades for cosmetics.
Polyplastics Co.,Ltd.
Polyacetal resin - DURACON ® M90-12 CF2001
DURACON ® is a registered trademark of Polyplastics Co.,Ltd.
in Japan and other countries.
